Bogie
Also called: Roller frame, track roller assembly, carrier frame
A pivoting frame carrying two or more track rollers, which lets the rollers follow uneven ground independently and spreads the machine's weight along the track rather than concentrating it at fixed points.
What it does
On larger tracked machines the rollers are not bolted rigidly to the track frame; they are mounted in bogies that pivot, so each pair can rise and fall over obstacles while keeping all rollers loaded. The result is better weight distribution, a smoother ride and considerably less shock into the undercarriage — the same principle railway vehicles use, and for the same reason. Roller flanges guide the chain, and the whole assembly runs sealed and oil-filled.
Why it becomes an object

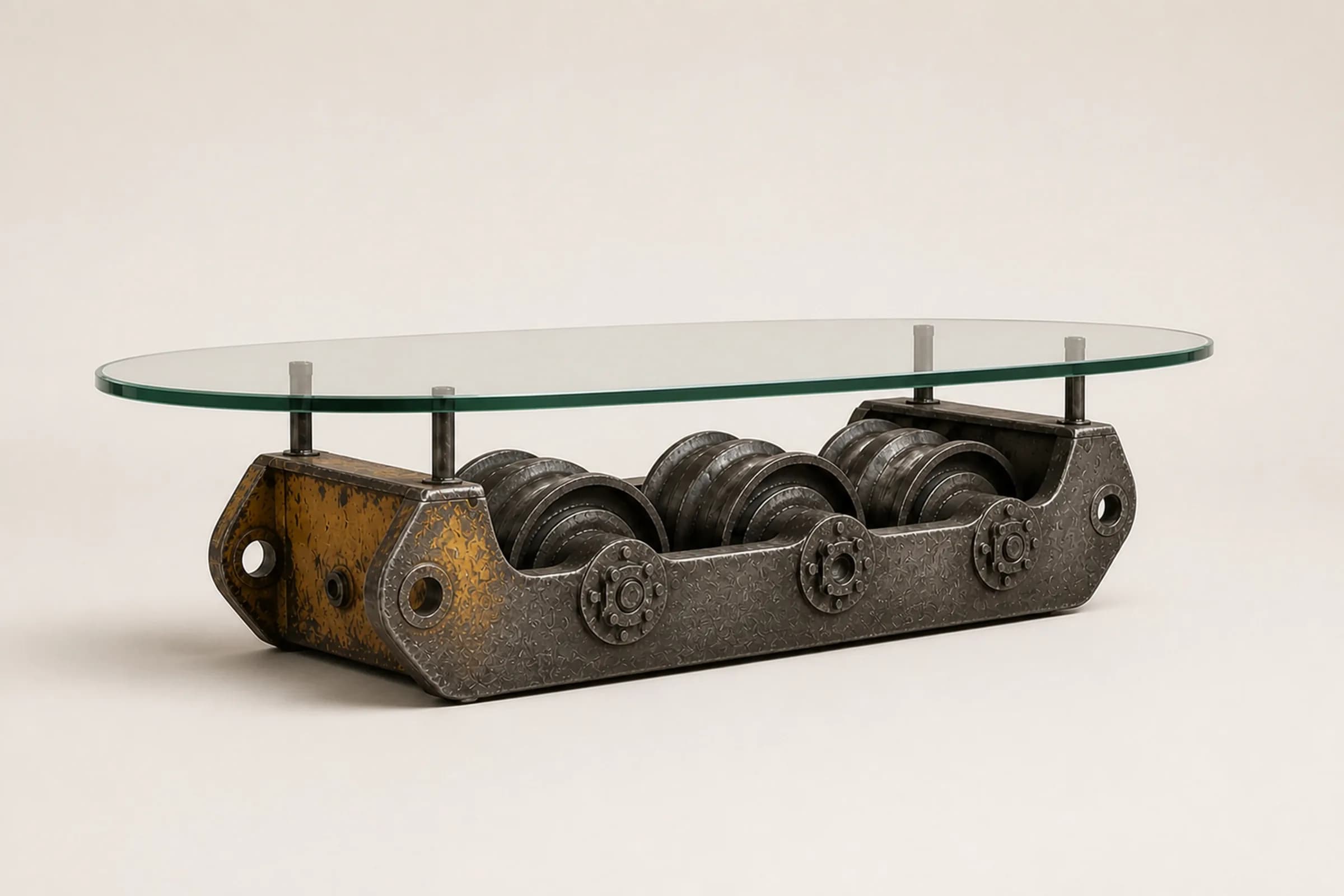

A bogie is an assembly rather than a single part: two or three rollers in a frame, with pivots, seals and end caps, and it carries wear at every one of those interfaces. Its natural rhythm — repeated cylindrical rollers on a common frame — is the reason it works visually at furniture scale, and the pivoting geometry means it sits in a stable three-point stance without adjustment. It is retired on roller wear or seal failure, which leaves the frame and pivots intact.
