Hydraulic quick coupler
Also called: Quick hitch, quick attach
A mechanism between an excavator's arm and its attachment that lets the operator release one tool and pick up another from the cab, without leaving the machine to knock out pins.
What it does
The coupler picks up the attachment's two pins: a fixed hook engages the front pin, and a hydraulically driven wedge or latch closes on the rear one. A safety device — usually a spring-loaded secondary catch — must hold the attachment even if hydraulic pressure is lost, which is a regulated requirement in most jurisdictions after a history of dropped attachments. Fully hydraulic couplers also connect the oil lines automatically, so a breaker or grab can be picked up without a manual coupling.
Why it becomes an object

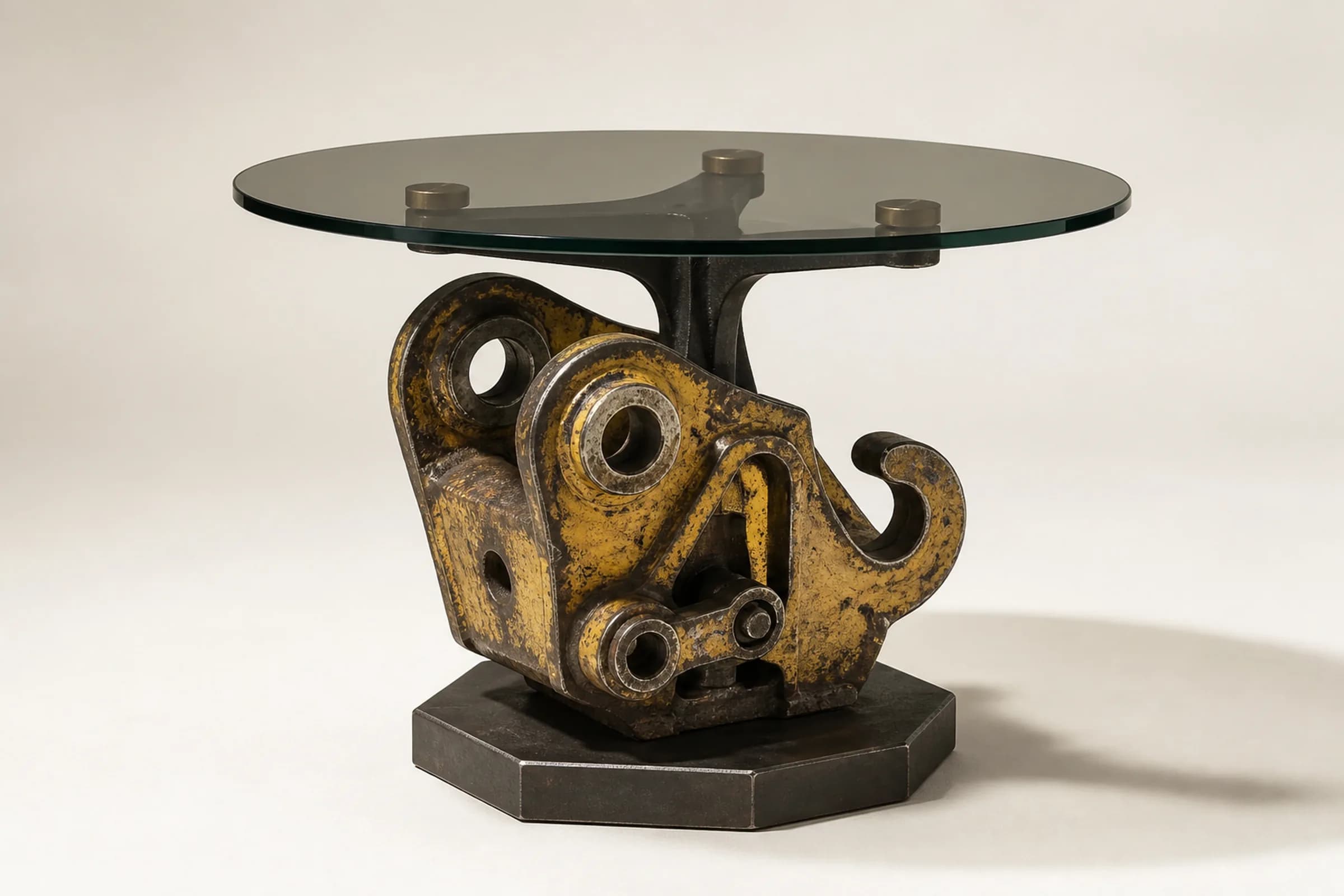

It is the densest small structure on the machine: two thick side plates, a machined hook, a wedge, a cylinder and a safety catch, all inside a body the size of a suitcase but weighing well over 100 kg. Everything visible is load-bearing, and the wear is concentrated and legible — the hook throat polishes to bright metal, the wedge face galls, and the plates carry the impact marks of every attachment change. It is retired on hook wear or a cracked plate, and the surviving body is unusually compact for its mass.
